Fuelstik

Precision fuel measurement you can count on

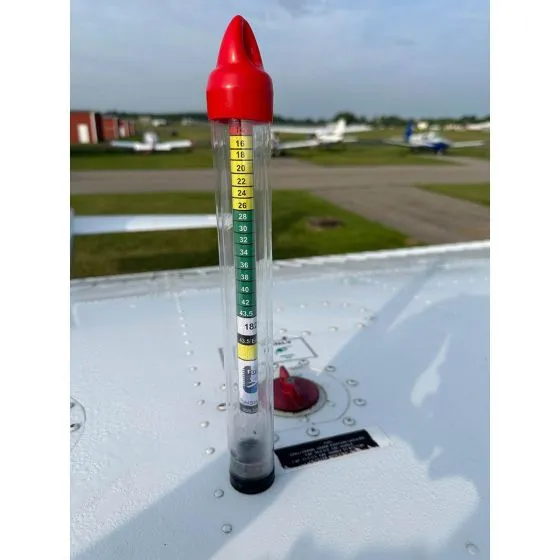

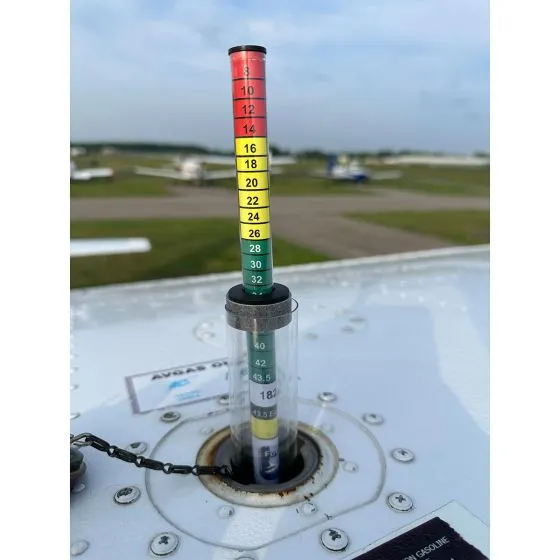

No more guessing about your fuel levels! The FuelStik, built with incredibly durable high-impact plastic tubing and reinforced with aluminum rings, is designed to withstand the rigors of frequent use and won’t fall into the tank. Its sleek, yet sturdy design ensures accurate and consistent fuel readings, even when the fuel in your tank is moving or sloshing during pre-flight checks. The included shipping tube doubles as a vented storage tube, allowing any residual fuel to safely evaporate between uses. This not only prolongs the life of the gauge but also reduces manufacturing waste, making it a smart, eco-friendly solution for pilots who value sustainability.

Key Features:

– Precision readings: provides reliable measurements in both gallons and pounds, with large, easy-to-read numbers that are visible from outside the tank.

– Enhanced handling: upper and lower aluminum rings offer better grip and control when in use.

– Color-coded cruise sections: visual markers indicate approximate fuel consumption during 1/3 cruise.

– Secure design: designed to ensure it won’t fall into the fuel tank, compatible with most aircraft.

– Proudly 100% made in the USA

Specifications:

– Device size: 10 3/4″ (273 mm) X 1 1/4″ (32mm)

– Shipping tube size: 12 5/8″ (320 mm) X 1 1/2″ (38 mm)

– Weight: 38g device only, 82g with shipping tube/documents

– Construction: fuel resistant plastic and aluminum

Aircraft guides:

Choose your aircraft-specific scale or choose the universal scale.

– 172 N-Q (long range), 25 gal usable

– 172 S-R, 26.5 gal usable

– 182 S-T, 43.5 gal usable

– SR G2, 41.5 gal usable

– SR G3, 46 gal usable

– PA28 150-180, 24 gal usable

– PA28 151-181, 24 gal usable

– Master universal scale

More info:

– Calibrating the FuelStik: video and instructions

– Using Your FuelStik

Note: The operator of the FuelStik “Master” is solely responsible to assure that the correct scale is properly installed in the Float Tube and that through on-ground experience the operator has observed that the quantities shown are accurate. The FuelStik is a secondary means of estimating fuel quantity and in no way is meant to replace the fuel measuring equipment mandated by FARs or otherwise.

Caution: This product is made to be used with 100LL fuel only. The use of any additives such as “Marvel Mystery Oil” will void the warranty.
