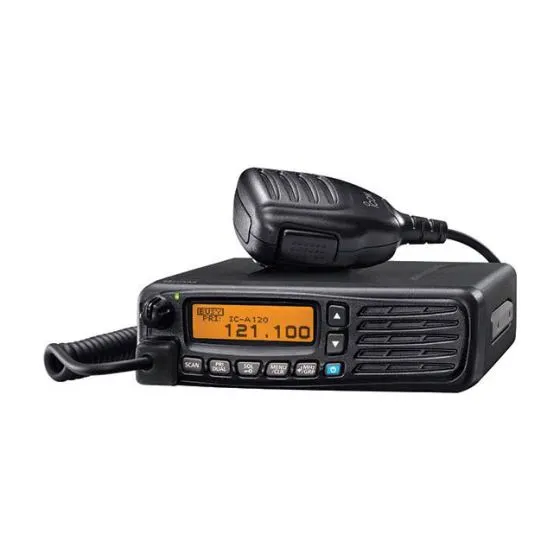

Icom A120B Base Station

The Icom A120B Base Station uses 36 watts of output power to satisfy the most demanding user. Ideal for FBOs, airparks, flying clubs, and avid hangar rats. Features a die-cast aluminum chassis, 200 memory channels, and 12 character alphanumeric display. Includes power supply, microphone, and a front-mounted speaker. It does not include antenna. 120-volt input.

Specifications:
Output Power: 36W (P.E.P)
Frequencies: 118.000-136.992MHz
Channel spacing: 8.33/25kHz
Channels: 200 with 12 character channel names
LCD display: Dot-matrix with alphanumeric characters & icons
Waterproof rating: IP54 dust protections & water resistant
Mount option: Mounting bracket included

ON-hook scan and dualwatch functions
The ON-Hook scan function automatically starts scanning when the hand microphone is hooked on the microphone hanger. When you take the microphone OFF hook, the scanning stops at the priority channel or displayed channel. The Dualwatch function checks the priority and operating channels alternatively.

Side tone function
When using a third-party headset with the optional OPC-871A headset adapter, the side tone function allows you to monitor your own transmitted voice via the connected headset. Even when using a hand microphone, your voice can be monitored from the headset.

Additional Resources
Click Here for User Manual
